Energy Storage Solution for Industrial and Commercial AC/DC Hybrid Microgrid

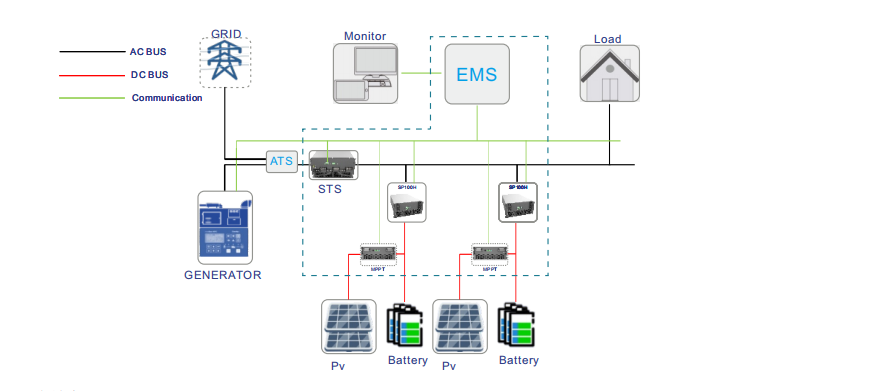

一、C&I AC-DC Hybrid Microgrid with Storage

Operating Mode：

        The system supports seamless switching between grid-connected and off-grid modes, as well as hybrid operation with a diesel generator. It also supports black start capability without a grid connection. Excess solar energy is used to charge the batteries.

Application Scenarios：

        Commercial and industrial energy storage microgrids with high photovoltaic capacity and long backup times. For example, a 60 kW load with 500 kW of photovoltaic capacity. Using AC-coupled PCS 500 kW and photovoltaic 500 kW, or DC-coupled PCS 100 kW with MPPT modules of 500 kW, provides better efficiency and cost optimization.

Value Proposition：

        While ensuring continuous and stable power supply, the system enhances efficiency and reduces overall costs.
