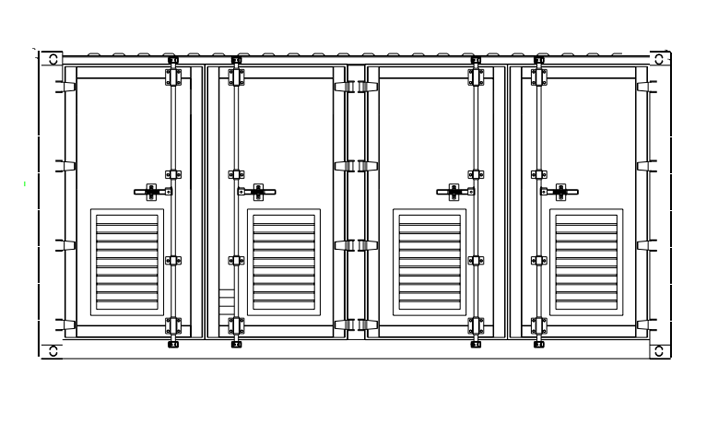

TGP300M1200VS Microgrid Energy Storage System
A high-efficiency, high-reliability energy storage system specifically developed for small to medium-sized microgrid applications. It supports multi-unit parallel operation, hybrid operation with diesel generators, as well as both DC-coupled and AC-coupled configurations. An external STS enables fast switching between grid-connected and off-grid modes. It is suitable for various scenarios such as small commercial and industrial facilities, small island microgrids, telecom base stations, and distribution substations, meeting the diverse needs of different users.
| PV | |
| PV Module Power | 60KW |
| PV Inverter Power | 15KW x4 |
| PV Module Configuration | 5 modules, 4 strings per module, total 300KW |
| PV Panel Rating | 500W |
| PV Panel Model | 15S2P, 15KW per string, 20 strings, total 600pcs |
| PCS | |
| PCS Model | 100KW x3 |
| PCS - Grid-connected AC Side | |
| Rated Power | 100KW |
| Rated Current | 152A |
| Rated Voltage | 400V / 230V |
| Grid Voltage Range | -20% ~ +15% |
| Grid Frequency Range | 50Hz (47Hz~52Hz) / 60Hz (57Hz~62Hz) |
| Output Voltage Harmonics | < 3% |
| Power Factor | -1 ~ 1 |
| Overvoltage Category | Category II |
| Protection Class | Class I |
| PCS - Off-grid AC Side | |
| Rated Output Power | 100KW |
| Max Output Power | 110KW |
| Rated Output Current | 152A |
| Max Output Current | 167A |
| Rated Voltage | 400V / 230V |
| Output Voltage Harmonics | <3% (Linear Load) |
| Output Frequency | 50Hz / 60Hz |
| Battery | |
| Cell Type | DC 3.2V, 314Ah |
| Battery Pack | |
| Configuration | 1P48S |
| Rated Voltage | 153.6V |
| Capacity | 48.23KWh |
| Charge Cutoff Voltage | 172.8V |
| Discharge Cutoff Voltage | 134.4V |
| Charge/Discharge Rate | 0.5C |
| Battery Cluster | |
| Configuration | 1P240S |
| Rated Voltage | 768V |
| Capacity | 241.15KWh |
| Charge Cutoff Voltage | 876V |
| Discharge Cutoff Voltage | 672V |
| Charge/Discharge Rate | 0.5C |
| Battery System | |
| Configuration | 5P240S |
| Rated Voltage | 768V |
| Capacity | 1206KWh |
| Power | 603KW |
| System | |
| Max Efficiency | 97.80% |
| Dimension (WxDxH) | 5200×2438×2591mm |
| Temperature Range | -25°C to 60°C (derating > 45°C) |
| Pollution Degree | Class II |
