Energy storage system solution

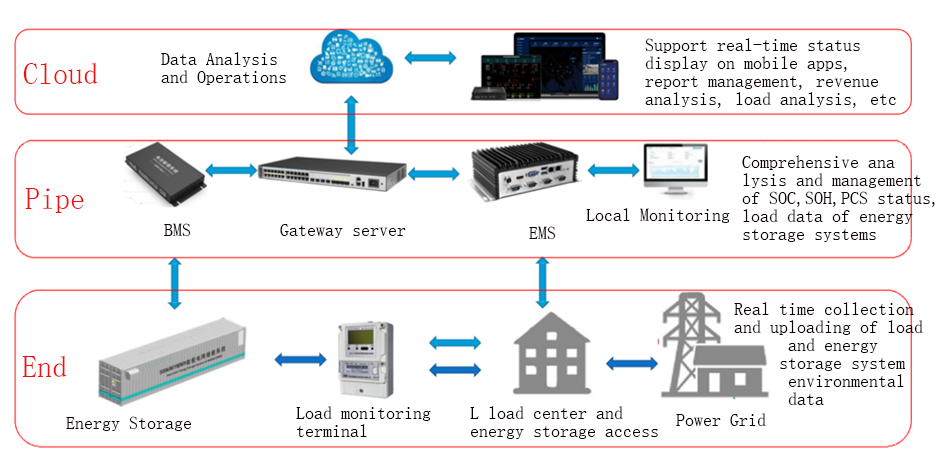

一、Cloud edge fusion energy regulation solution

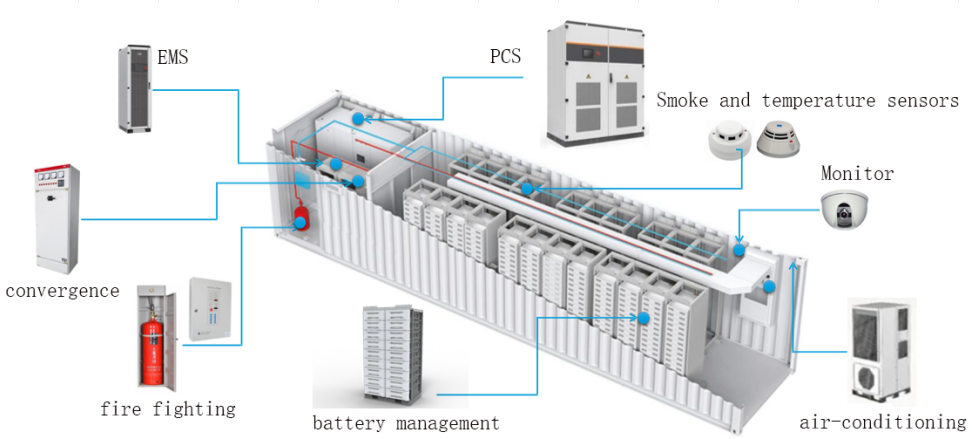

二、Introduction to the Composition of Energy Storage Systems

        The energy storage system mainly consists of a long cycle life 280Ah lithium-ion battery, battery management system,

power distribution system, grounding system, temperature control system, fire protection system, explosion-proof smoke

 exhaust, and load-bearing shell box.

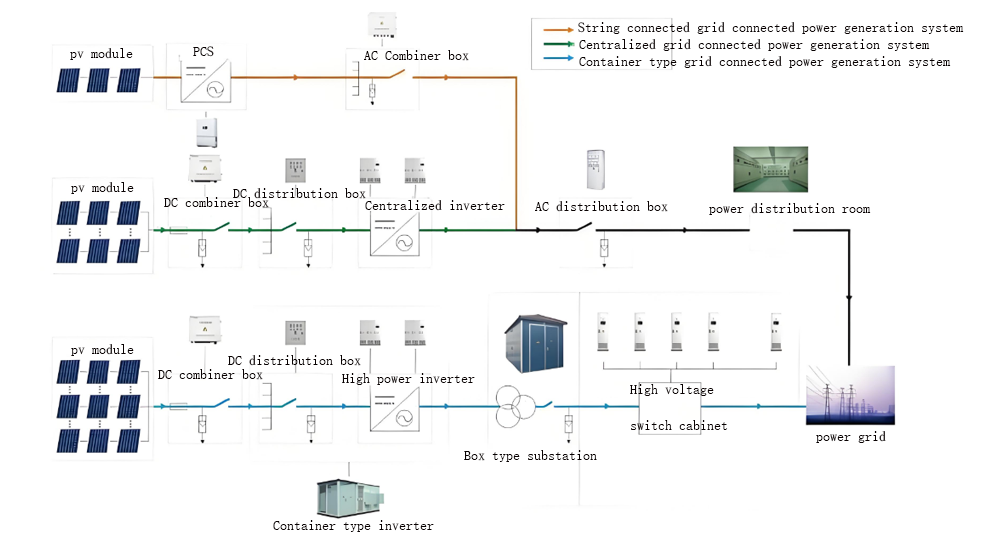

三、Energy storage system architecture

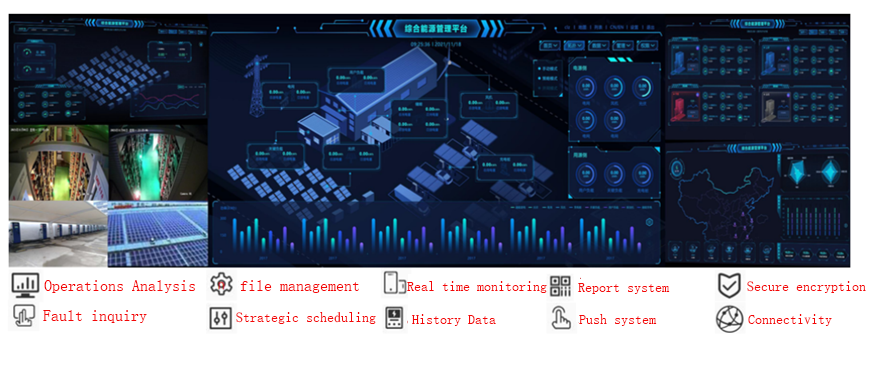

四、EMS Energy Management System

      The safety of the entire lifecycle after the energy storage system is put into operation is crucial, and how to control potential

 risks through sensors in the energy storage system is crucial. Based on the intelligent IoT operating system, the company has

developed energy management software that enables multi-level and comprehensive analysis and prediction of battery core

parameters. By comparing and analyzing data from time dimensions and similar operating products, the value of the data

cluster is greatly enhanced. It provides early warning of potential safety hazards in different scenarios and constantly perceives

its own status and external environment to ensure the safe operation of equipment assets.
