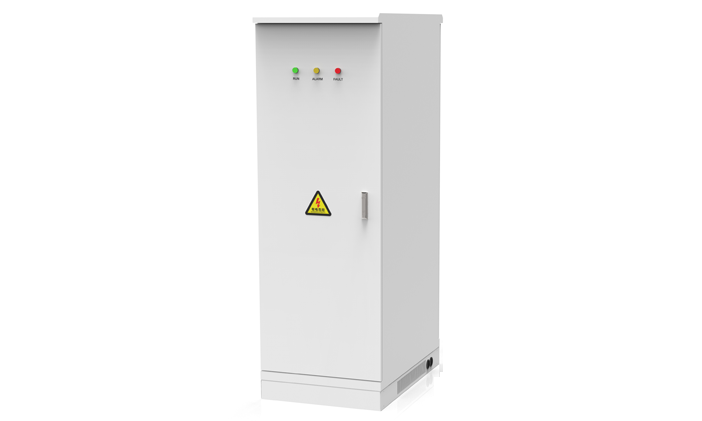

TGP15 Series Microgrid Energy Storage System
A high-efficiency, high-reliability energy storage inverter specifically designed for small to medium-sized energy storage microgrids. It supports PV integration and includes a built-in grid/off-grid switching device. It allows for multi-unit parallel operation, hybrid operation with diesel generators, and fast switching between grid-connected and off-grid modes. Suitable for various scenarios such as small commercial and industrial facilities, small island microgrids, farms, and base stations, meeting the diverse needs of different users.
| Parameters | TGP15M30 | TGP15M38 | TGP15M57 | TGP15M71 |
| Battery | ||||
| Cell Type | 150Ah | 280Ah | ||
| BMS System | 64S | 80S | 64S | 80S |
| Battery Voltage Range | 185-234V | 232-292V | 185-234V | 232-292V |
| Capacity | 30KWh | 38KWh | 57KWh | 71KWh |
| PCS - Grid-connected AC Side | ||||
| Rated Power | 15KVA | |||
| Rated Current | 22A | |||
| Rated Voltage | 400V / 230V | |||
| Grid Voltage Range | -20% ~ +15% | |||
| Starting Inrush Current | 8.5A | |||
| Grid Frequency Range | 50Hz (47Hz~52Hz) / 60Hz (57Hz~62Hz) | |||
| Output Voltage Harmonics | < 3% | |||
| Power Factor | -1 ~ 1 | |||
| PCS - Off-grid AC Side | ||||
| Rated Output Power | 15KVA | |||
| Max Output Power | 16.5KVA | |||
| Max Output Current | 24.2A | |||
| Rated Voltage | 400V / 230V | |||
| Output Voltage Harmonics | <3% | |||
| Degree of Imbalance | 100% | |||
| Output Overload Capacity | 1.1x rated output for continuous operation, 1.25x for 100 seconds, and 1.5x for 100 milliseconds. | |||
| System | ||||
| Grid/Off-grid switching Time | <10ms | |||
| Max Efficiency | 97.80% | |||
| Power Consumption | Standby < 20 W / No-load < 100 W | |||
| Protection Rating | IP20 (core control components IP5X) | |||
| Dimension (WxDxH) | 600x1000x2000mm | |||
| Weight | 640kg | 680kg | 800kg | 900kg |
| Temperature Range | -25°C to 60°C (derating > 45°C) | |||
| Humidity | 5~95% | |||
| Cooling Method | Smart forced-air cooling | |||
| Altitude | 4000m (derating above 2000m) | |||
