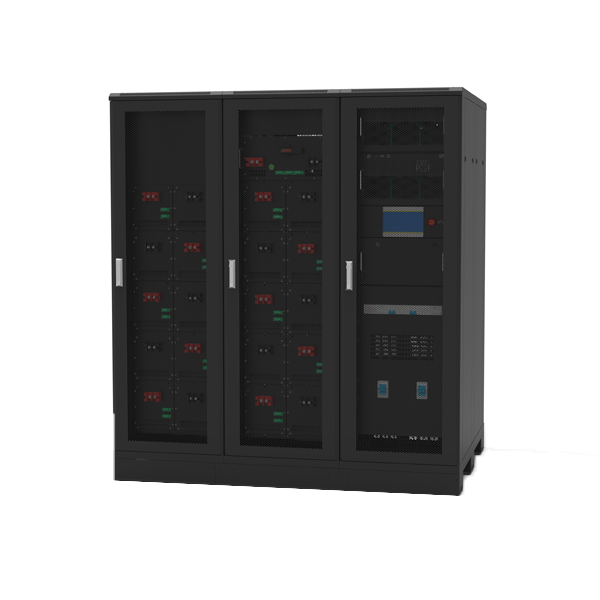

TGP100M215/S Microgrid Energy Storage System
A high-efficiency, high-reliability energy storage system specifically designed for small to medium-sized energy storage microgrids. It supports multi-unit parallel operation, hybrid operation with diesel generators, and both DC-coupled and AC-coupled configurations. An external STS enables fast switching between grid-connected and off-grid modes. It is suitable for various scenarios such as small commercial and industrial facilities, small island microgrids, data centers, and villas, meeting the diverse needs of different users.
| Parameters | TGP100M215 / TGP100M215S |
| PCS | |
| PCS Model | 100KW x1 |
| PCS - Grid-connected AC Side | |
| Rated Power | 100KW |
| Rated Current | 152A |
| Rated Voltage | 400V / 230V |
| Grid Voltage Range | -20% ~ +15% |
| Grid Frequency Range | 50Hz (47Hz~52Hz) / 60Hz (57Hz~62Hz) |
| Output Voltage Harmonics | < 3% |
| Power Factor | -1 ~ 1 |
| Overvoltage Category | Category II |
| Protection Class | Class I |
| PCS - Off-grid AC Side | |
| Rated Output Power | 100KW |
| Max Output Power | 110KW |
| Rated Output Current | 152A |
| Max Output Current | 167A |
| Rated Voltage | 400V / 230V |
| Output Voltage Harmonics | <3% (Linear Load) |
| Output Frequency | 50Hz / 60Hz |
| Battery | |
| Cell Type | DC 3.2V, 280Ah |
| Battery Pack | |
| Configuration | 1P24S |
| Rated Voltage | 76.8V |
| Capacity | 21.5KWh |
| Charge Cutoff Voltage | 87.6V |
| Discharge Cutoff Voltage | 67.2V |
| Charge/Discharge Rate | 0.5C |
| Battery Cluster | |
| Configuration | 1P240S |
| Rated Voltage | 768V |
| Capacity | 215KWh |
| Charge Cutoff Voltage | 876V |
| Discharge Cutoff Voltage | 672V |
| Charge/Discharge Rate | 0.5C |
| Battery System | |
| Configuration | 1P240S |
| Rated Voltage | 768V |
| Capacity | 215KWh |
| Power | 107.5KW |
| System | |
| Max Efficiency | 97.80% |
| Dimension (WxDxH) | 2200×1250×2325mm / 1800×1000×2000mm |
| Temperature Range | -25°C to 60°C (derating > 45°C) |
| Pollution Degree | Class II |
