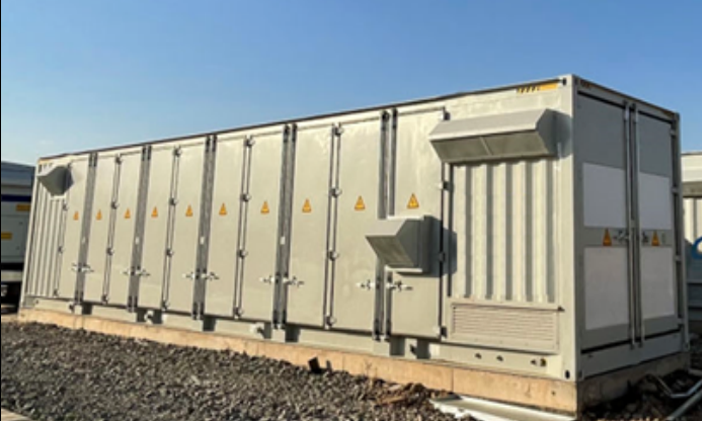

TGP300M3000/6000 Series Energy Storage System
A high-efficiency, high-reliability energy storage system specifically developed for medium to large-scale energy storage microgrids. It is suitable for various scenarios such as energy storage integration in new large and medium-sized power stations and peak-valley arbitrage in commercial and industrial applications, meeting the diverse needs of different users.
| Parameters | TG6000KWH-2H | TG3000KWH-2H | ||
| Battery Pack | ||||
| Series / Parallel | 18P416S | 8P416S | ||
| Energy | 6.71MWH | 3MWH | ||
| Power | 3.35MW | 1.5MW | ||
| Rated Voltage | 1331.2V | 1331.2V | ||
| Charging Cut-off Voltage | 1497.6V | 1497.6V | ||
| Discharge Cut-off Voltage | 1164.8V | 1164.8V | ||
| Capacity | 5040Ah | 2240Ah | ||
| Weight | 80T | 30T | ||
| Dimension (WxDxH) | 13716x2900x3000mm | 6058x2900x3000mm | ||
| Cooling Method | Liquid Cooling | Liquid Cooling | ||
| Corrosion Protection Level | C4 | C4 | ||
| TG3000KWH | ||||
| Item No. | Description | QTY | UNIT | Remarks |
| 1 | 1331.2V 280Ah Battery Cluster | 8 | pcs | |
| 2 | Combiner Cabinet | 1 | pcs | UPS included |
| 3 | Three-Tier BMS | 1 | pcs | |
| 4 | SDCU | 1 | pcs | |
| 5 | Liquid Cooling System | 1 | pcs | 1 cluster stack/9 battery packs/1 liquid cooling unit |
| 6 | Lighting System | 1 | pcs | |
| 7 | Monitoring System | 1 | pcs | |
| 8 | 20-Feet Standard Container | 1 | pcs | |
| 9 | Firefighting System | 1 | pcs | |
| 10 | Power Distribution System | 1 | pcs | 380V Power Distribution Cabinet |
| TG6000KWH | ||||
| Item No. | Description | QTY | UNIT | Remarks |
| 1 | 1331.2V 280Ah Battery Cluster | 18 | pcs | |
| 2 | Combiner Cabinet | 2 | pcs | UPS included |
| 3 | Three-Tier BMS | 2 | pcs | |
| 4 | SDCU | 1 | pcs | |
| 5 | Liquid Cooling System | 2 | pcs | 1 cluster stack/9 battery packs/1 liquid cooling unit |
| 6 | Lighting System | 1 | pcs | |
| 7 | Monitoring System | 1 | pcs | |
| 8 | 45-Feet Standard Container | 1 | pcs | |
| 9 | Firefighting System | 1 | pcs | |
| 10 | Power Distribution System | 1 | pcs | 380V Power Distribution Cabinet |
