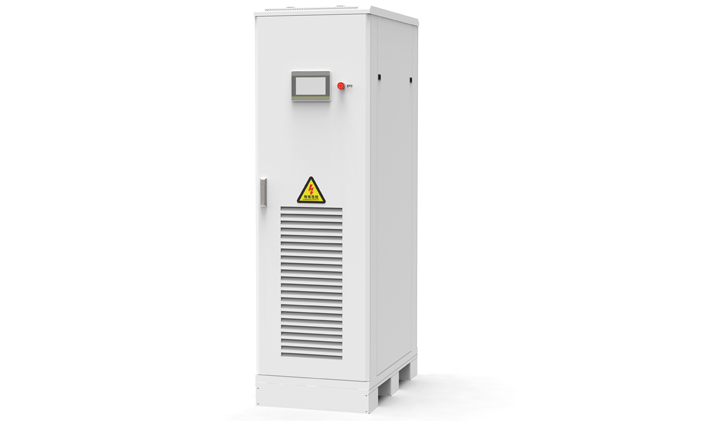

TGP30 Series Microgrid Energy Storage System
A high-efficiency, high-reliability energy storage inverter specifically developed for small to medium-sized energy storage microgrids. It features a built-in grid/off-grid switching device, supports multi-unit parallel operation, hybrid operation with diesel generators, and fast switching between grid-connected and off-grid modes. It is suitable for various scenarios such as small commercial and industrial facilities, small island microgrids, base stations, and villas, meeting the diverse needs of different users.
| Parameters | TGP30M80 | TGP30M97 |
| Battery | ||
| Cell Type | 314Ah | |
| BMS System | 80S | 96S |
| Battery Voltage Range | 224-288V | 268-350V |
| Capacity | 80KWh | 97KWh |
| PCS - Grid-connected AC Side | ||
| Rated Power | 30KVA | |
| Rated Current | 43.5A | |
| Rated Voltage | 400V / 230V | |
| Grid Voltage Range | -20% ~ +15% | |
| Starting Inrush Current | 8.5A | |
| Grid Frequency Range | 50Hz (47Hz~52Hz) / 60Hz (57Hz~62Hz) | |
| Output Voltage Harmonics | < 3% | |
| Power Factor | -1 ~ 1 | |
| PCS - Off-grid AC Side | ||
| Rated Output Power | 30KVA | |
| Max Output Power | 33KVA | |
| Max Output Current | 43.5A | |
| Rated Voltage | 400V / 230V | |
| Output Voltage Harmonics | <3% | |
| Degree of Imbalance | 100% | |
| Output Overload Capacity | 1.1x rated output for continuous operation, 1.25x for 100 seconds, and 1.5x for 100 milliseconds. | |
| System | ||
| Grid/Off-grid switching Time | <10ms | |
| Max Efficiency | 97.80% | |
| Power Consumption | Standby < 20 W / No-load < 160 W | |
| Protection Rating | IP20 (core control components IP5X) | |
| Dimension (WxDxH) | 600x1000x2000mm | 600x1000x2300mm |
| Weight | 950kg | 1050kg |
| Temperature Range | -25°C to 60°C (derating > 45°C) | |
| Humidity | 5~95% | |
| Cooling Method | Smart forced-air cooling | |
| Altitude | 4000m (derating above 2000m) | |
