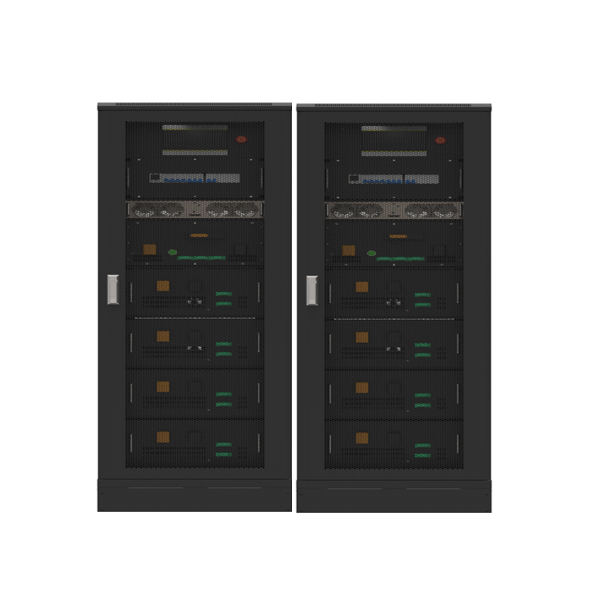

TGP100M100V PV Storage Microgrid System
This is a highly efficient and highly reliable energy storage inverter developed specifically for small and medium-sized energy storage microgrids. It supports photovoltaic (PV) integration, includes a grid-connected and off-grid switching device, supports parallel operation of multiple units, supports hybrid operation with diesel generators, and enables rapid switching between grid-connected and off-grid modes. It is suitable for a variety of scenarios, including small commercial and industrial sites, small island microgrids, communication base stations, and villas, meeting the needs of different users.
| PV | |
| PV Module Power | 60KW |
| PV Inverter Power | 15KW x4 |
| PV Module Configuration | 2 modules, 4 strings per module, total 120KW |
| PV Panel Rating | 500W |
| PV Panel Model | 15S2P, 15KW per string, 8 strings, total 240pcs |
| PCS | |
| PCS Model | 100KW x1 |
| PCS - Grid-connected AC Side | |
| Rated Power | 100KW |
| Rated Current | 152A |
| Rated Voltage | 400V / 230V |
| Grid Voltage Range | -20% ~ +15% |
| Grid Frequency Range | 50Hz (47Hz~52Hz) / 60Hz (57Hz~62Hz) |
| Output Voltage Harmonics | < 3% |
| Power Factor | -1 ~ 1 |
| Overvoltage Category | Category II |
| Protection Class | Class I |
| PCS - Off-grid AC Side | |
| Rated Output Power | 100KW |
| Max Output Power | 110KW |
| Rated Output Current | 152A |
| Max Output Current | 167A |
| Rated Voltage | 400V / 230V |
| Output Voltage Harmonics | <3% (Linear Load) |
| Output Frequency | 50Hz / 60Hz |
| Battery | |
| Cell Type | DC 3.2V, 150Ah |
| Battery Pack | |
| Configuration | 1P24S |
| Rated Voltage | 76.8V |
| Capacity | 11.52KWh |
| Charge Cutoff Voltage | 87.6V |
| Discharge Cutoff Voltage | 67.2V |
| Charge/Discharge Rate | 0.5C |
| Battery Cluster | |
| Configuration | 1P216S |
| Rated Voltage | 691.2V |
| Capacity | 103.68KWh |
| Charge Cutoff Voltage | 788V |
| Discharge Cutoff Voltage | 604V |
| Charge/Discharge Rate | 0.5C |
| Battery System | |
| Configuration | 1P216S |
| Rated Voltage | 691V |
| Capacity | 103KWh |
| Power | 107.5KW |
| System | |
| Max Efficiency | 97.80% |
| Dimension (WxDxH) | 2200×1250×2325mm / 1800×1000×2000mm |
| Temperature Range | -25°C to 60°C (derating > 45°C) |
| Pollution Degree | Class II |
