TG-S140Ah Marine Battery Pack
The marine lithium iron phosphate battery pack and the marine lithium battery system have respectively obtained CCS product type approval certificate and CCS marine product certificate.
| Parameters | TG-140Ah-1A-003 |
| Type | Lithium Iron Phosphate |
| Battery Combination Method | 1P16S |
| Rated Voltage | DC 51.2V |
| Rated Capacity | 140Ah |
| Rated Energy | 7.17kWh |
| Charging Cut-off Voltage | 57.6V |
| Discharge Cut-off Voltage | 46.4V |
| Standard Charging and Discharging Current | Charging:70A |
| Discharge:70A | |
| Maximum Continuous Charging and Discharging Current | Charging:84A |
| Discharge:70A | |
| Installation Method | Rack/Flat Tile |
| Weight | 65kg |
| Size | L841.5 xW425 xH163mm |
| Protection Grade | IP67 |

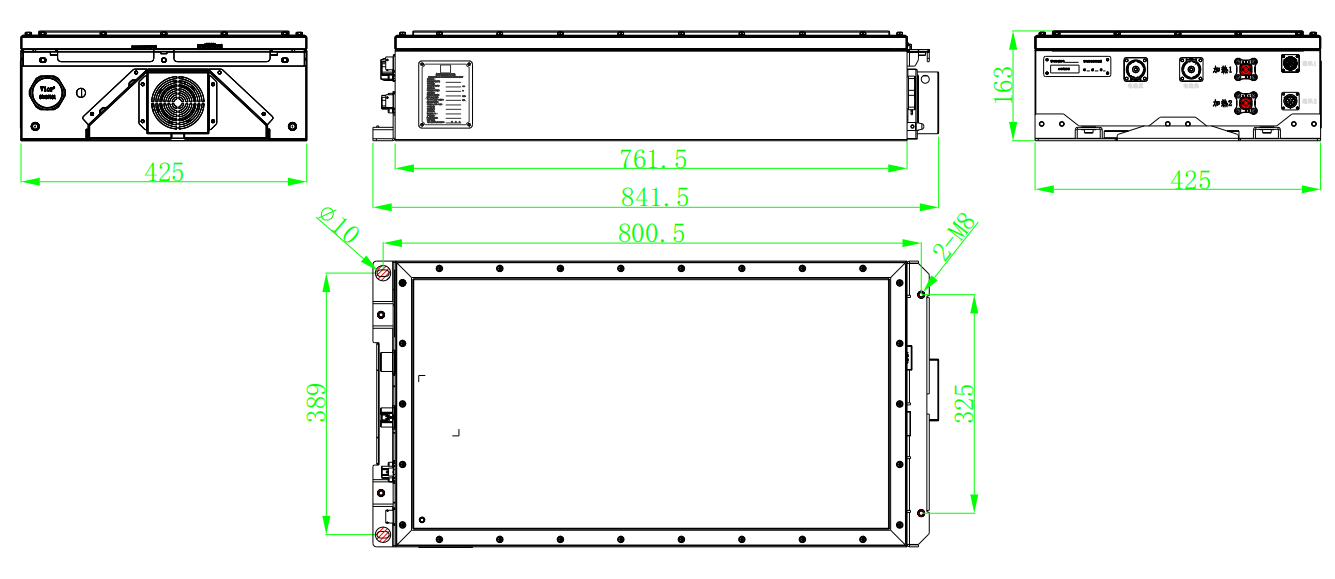

产品结构尺寸：
